United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of 3pc ball valve with mounting pad in Vietnam, also supports customized service. If you're going to buy bulk advanced 3pc ball valve with mounting pad, welcome to get free sample from our factory. Quality products and low price are available.
Product Introduction

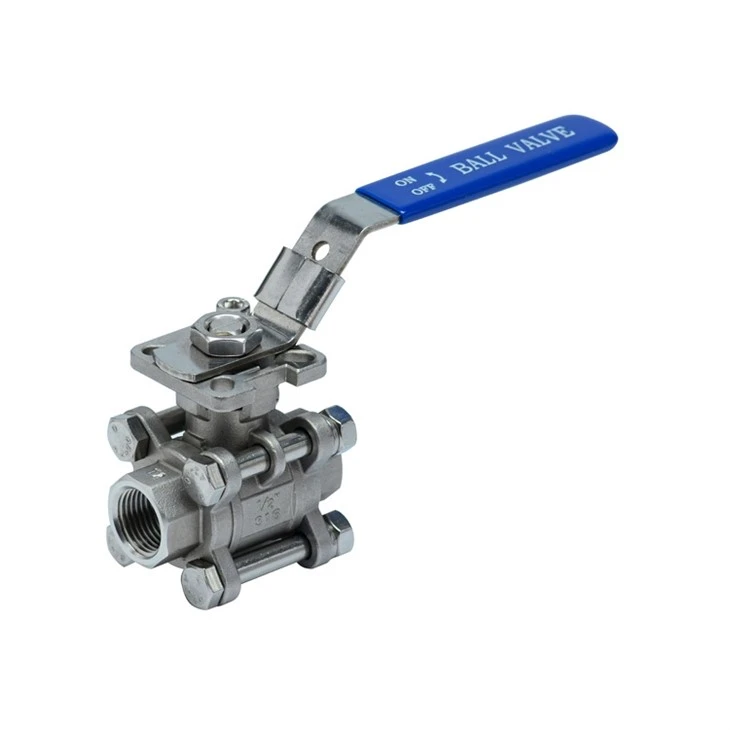

The 3PC Ball Valve with Mounting Pad is a high-performance shut-off valve featuring a three-piece body construction for easy maintenance. Its key characteristic is the ISO5211 compliant mounting pad integrated into the top, allowing for direct, bracket-less installation of pneumatic or electric actuators for automated control.
Product Parameters
|
Item |
Parameter |
|
Size Range |
1/4'' to 4'' |
|
Pressure Rating |
1000 PSI / PN63 |
|
Temperature Range |
-20°C to 180°C |
|
Port Type |
Full Port |
|
Stem Design |
Blow-out Proof |
|
Body Process |
Investment Casting |
|
Mounting Standard |
ISO5211 Mounting Pad |
|
Operation |
Locking Device Handle |
|
Applicable Threads |
ASME B1.20.1, BS21, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1 |
|
Inspection Standards |
API598, EN12266 |
|
Product Approvals |
PED 97/23/EC (CE 0035), AD2000-W0 |
Product Advantages
- High-Standard Material & Process: Made of investment cast stainless steel with AD2000-W0 approval, ensuring reliable material quality from the foundry.
- Full Port Design: Provides an unrestricted flow path with minimal pressure drop, ideal for applications requiring high flow rates and line cleaning.
- Reliable Safety Features: Equipped with a blow-out proof stem and a locking device handle to prevent misoperation and accidental leakage, ensuring on-site safety.
- Broad Compatibility: Threaded ends comply with various international standards (NPT, BSP, DIN, etc.), and the ISO5211 mounting pad facilitates global sourcing and maintenance.
- International Certifications: Approved under PED 97/23/EC (CE 0035) and tested to API598 and EN12266, meeting strict EU pressure equipment and industrial valve testing standards.
Main Applications
- Chemical, Petrochemical & Oil & Gas: Suitable for corrosive or general media pipelines for isolation. The blow-out proof and locking features ensure safety in hazardous environments.
- Water Treatment, Food & Beverage, HVACR: The stainless steel construction ensures hygiene, while the full bore prevents residue buildup, meeting drinking water and food-grade requirements.
- Shipbuilding & Pharmaceutical: Designed to withstand marine vibration and space constraints. Its easy disassembly also meets the strict cleanliness demands of the pharmaceutical industry.
- Pulp & Paper, Sugar Refinery: In media containing fibers or particles, the full port design effectively prevents clogging, ensuring smooth pipeline operation.
