United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of 2pc flanged ball valve(jis) in Vietnam, also supports customized service. If you're going to buy bulk advanced 2pc flanged ball valve(jis), welcome to get free sample from our factory. Quality products and low price are available.
Product Introduction

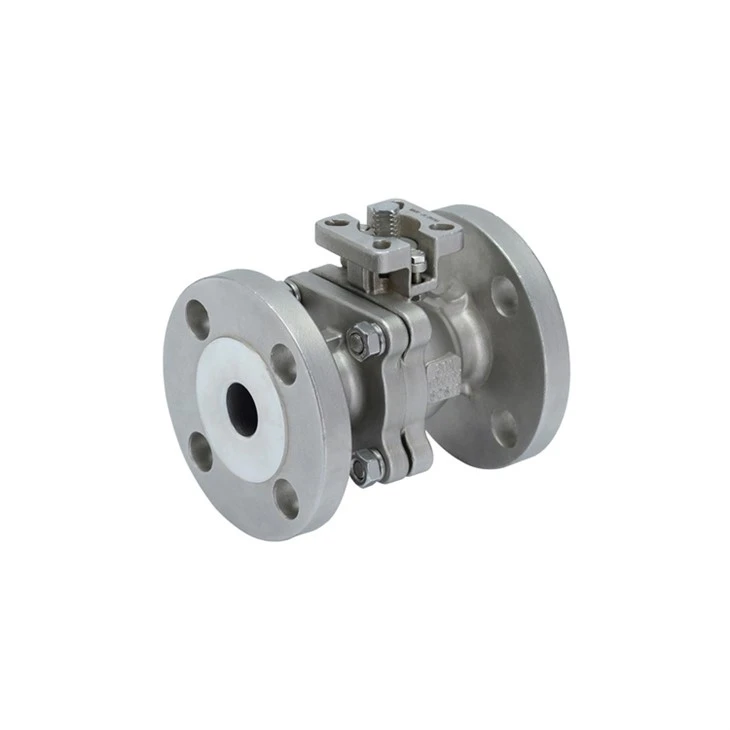

The 2PC Flanged Ball Valve (JIS) is constructed from investment-cast stainless steel with full port configuration to minimize flow resistance. The valve incorporates a blow-out proof stem as a standard safety feature and includes an ISO5211 mounting pad for actuator installation. Material certification to AD2000-W0 and compliance with PED 97/23/EC pressure equipment directives are provided. The 2PC Flanged Ball Valve (JIS) is manufactured under JIS B2002 design criteria and tested in accordance with JIS B2003 and API 598 protocols.
Specifications
|
Parameter |
Value |
|
Nominal Size |
1/2″ – 6″ |
|
Pressure Rating |
JIS 10K |
|
Temperature Range |
-20°C to 180°C |
|
Bore Type |
Full Port |
|
End Connection |
Flanged, JIS B2238 |
|
Body Construction |
Investment Casting |
|
Stem Design |
Blow-out Proof |
|
Actuator Mounting |
ISO5211 Pad |
|
Applicable Standards |
JIS B2002 (Design), JIS B2238 (Flanges), JIS B2003/API 598 (Testing) |
|
Certifications |
PED 97/23/EC, AD2000-W0 |
Technical Features
- Investment Casting - Provides consistent wall thickness and dimensional stability compared to conventional casting methods
- Full Port Geometry - Maintains line bore diameter through the valve body to reduce turbulence and pressure loss
- Blow-out Proof Stem - Retained by internal stem shoulder design to prevent ejection from pressure thrust
- ISO5211 Mounting Interface - Enables direct mounting of pneumatic, electric or hydraulic actuators without bracketry modifications
Applications
|
Sector |
Service |
|
General Industry |
Water, steam, compressed air distribution |
|
Chemical Processing |
Process isolation, tank transfer |
|
Petrochemical |
Pipeline shut-off, utility services |
|
Oil & Gas |
Secondary process lines, tankage |
|
HVAC |
Heating and cooling water circuits |
|
Water Treatment |
Filtration, distribution, effluent handling |
|
Food & Beverage |
Process water, CIP supply lines |
|
Marine |
Bilge, ballast, cooling systems |
|
Mining |
Process water, slurry isolation |
|
Pharmaceutical |
Utility services, clean steam |
