Product Overview

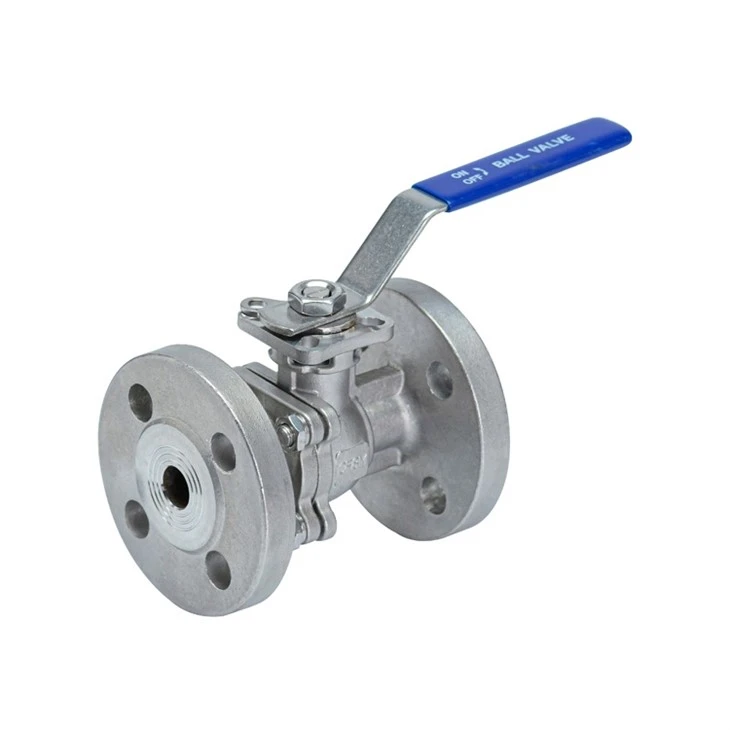

The 2PC Flanged Ball Valve (DIN) is manufactured for industrial applications requiring reliable shut-off performance. The investment cast body provides consistent wall thickness and dimensional accuracy. A blow-out proof stem design prevents stem ejection under pressure. The ISO5211 mounting pad allows direct actuator attachment without modification. The valve carries CE marking under the Pressure Equipment Directive and AD2000-W0 material approval for pressure-bearing components.
Product Specifications
|
Item |
Specification / Description |
|
Size Range |
1/2″ to 6″ |
|
Pressure Rating |
PN16–40 |
|
Temperature Range |
-20°C to 180°C |
|
Port Type |
Full Port |
|
Casting Process |
Investment Casting |
|
Stem Design |
Blow-out Proof Stem |
|
Mounting Pad |
ISO5211 |
|
PED Approval |
PED 97/23/EC (CE 0035) Approved |
|
Casting Approval |
AD2000-W0 Approved |
|
Design Standard |
DIN3357 / EN12516 |
|
Flange Standard |
DIN2501, PN10–40 |
|
Face to Face Standard |
DIN3202-F4 |
|
Inspection Standard |
DIN3230/3, EN12266 |
|
Brand |
United Brothers |
Technical Advantages
|
Feature |
Benefit |
|
Investment Cast Body |
Consistent wall thickness, reduced porosity, precise flow passages |
|
Blow-Out Proof Stem |
Enhanced safety for high-pressure operation |
|
ISO5211 Direct Mount |
Simplified automation, reduced installation height |
|
Full Port Geometry |
Low pressure drop, pigging compatible |
|
Replaceable Seats |
Field serviceable, extended service life |
|
Multiple Pressure Classes |
Single design covers PN10 through PN40 applications |
Applications
Chemical & Petrochemical
Drinking Water Systems
Food & Beverage Processing
HVAC and Refrigeration
Shipbuilding
Mining
Oil & Gas
Pharmaceutical
Paper & Pulp
Sugar Refining
Water Treatment
