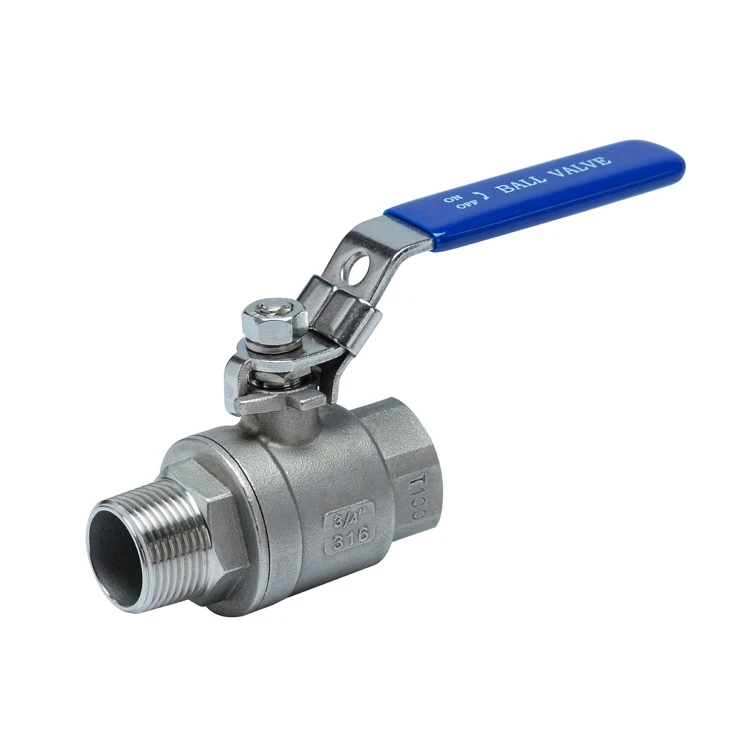

2PC Ball Valve MF

2PC Ball Valve MF

United Brothers presents the 2PC Ball Valve MF, a fullport stainlesssteel valve with a pressure rating of 1000 PSI / PN63 and threaded connections. Designed for water, oil, and gas applications, it is widely used in a wide range of industries including the petrochemical, pharmaceutical, food processing, and shipbuilding industries.
Send Inquiry
Description

United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of 2pc ball valve mf in Vietnam, also supports customized service. If you're going to buy bulk advanced 2pc ball valve mf, welcome to get free sample from our factory. Quality products and low price are available.



Product Overview



The United Brothers 2PC Ball Valve MF is manufactured using investment casting and incorporates a blow-out proof stem for enhanced safety under high-pressure conditions. It meets the requirements of PED 2014/68/EU (CE 0035) and AD2000-W0, ensuring reliable sealing performance and long service life. An optional locking device handle is available for applications requiring controlled access.



Features



Parameter

Specification

Size Range

1/4″ to 4″

Pressure Rating

1000 PSI / PN63

Temperature Range

-20°C to 180°C

Port Type

Full Port

Body Manufacturing

Investment Casting

Stem Design

Blow-out Proof

Handle Option

Locking Device Handle (Optional)

Certification

PED 97/23/EC (CE 0035) Approved

Casting Approval

AD2000-W0 Approved

Thread Standards

ASME B1.20.1, BS21, DIN 2999/259, ISO 228-1, JIS B 0203, ISO 7/1

Inspection & Testing

API 598, EN 12266

Brand

United Brothers



Application



This valve is suitable for demanding fluid control applications across a broad spectrum of industries, including chemical and petrochemical processing, drinking water treatment, food and beverage production, HVACR systems, shipbuilding, mining, oil and gas transmission, pharmaceutical manufacturing, paper and pulp mills, sugar refineries, and water treatment facilities.

Chemical & Petrochemical
Chemical & Petrochemical
Drinking Water Food & Beverage HVACR
Drinking Water Food & Beverage HVACR
Paper & Pulp Sugar Refinery Water Treatment
Paper & Pulp Sugar Refinery Water Treatment
Shipbuilding
Shipbuilding

FAQ

Q: How should the 2PC Ball Valve MF be maintained and serviced?

A:

  • For long-term storage, operate the valve (open and close) once every six months to verify proper functionality.
  • Valves should be stored indoors in a dry and ventilated environment. The valve should remain in the fully closed position, and both ends must be sealed with protective covers. Avoid collision or impact during handling and installation.
  • Use the valve only within the specified medium and temperature range. Do not exceed the designated operating parameters.
  • To extend service life, operate the valve only in fully open or fully closed positions. It is not intended for flow regulation.
  • Apply external anti-corrosion treatment every one to two years, depending on the installation environment.
  • Inspect and service actuator performance annually. If key technical specifications show significant degradation, replace the actuator before further use.

Hot Tags: 2pc ball valve mf, Vietnam 2pc ball valve mf manufacturers, suppliers, factory
