Product Introduction

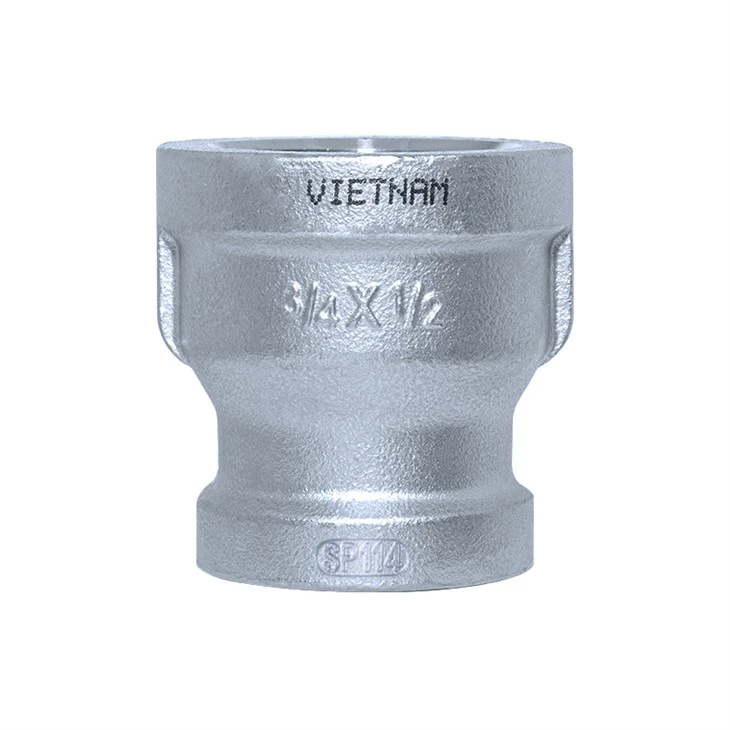

A Stainless Steel Red Socket Banded is a threaded pipe fitting designed to connect two pipes of different diameters. It has female threads on both ends and an external reinforcing ring (Banded) to enhance structural strength and sealing reliability at the connection point.
Product Parameters
|
SIZE |
1/8″, 1/4″ , 3/8″, 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″, 21/2″, 3″, 4″ |
|
PRESSURE |
150lbs |
|
THREAD |
ASME B1.20.1, DIN2999, ISO 228-1, ISO7/1 |
|
MATERIAL |
CF8/CF8M |
|
INVESTMENT CASTING |
|
|
ISO9001, AD2000, PED, CRN, NSF 61/372 |
|
|
BRAND: |
UB |
UB5011
| SIZE | 1/4×1/8″ | 3/8″×18" | 3/8″×1/4" | 1/2″×1/8" | 1/2″×1/4" | 1/2″×3/8" | 3/4″×1/8" | 3/4″×1/4" | 3/4″×3/8" | 3/4″×1/2" | 1″×1/8" | 1″×1/4" | 1″×3/8" | 1″×1/2" |
| PRESSURE | 150lbs | |||||||||||||
| THREAD | ASME B1.20.1,DIN2999,ISO 228-1,ISO7/1 | |||||||||||||
| MATERIAL | CF8/CF8M | |||||||||||||
| INVESTMENT CASTING | ||||||||||||||
| ISO9001,AD2000,PED,CRN,NSF 61/372 | ||||||||||||||
| BRAND: UB | ||||||||||||||
| MADE IN VIETNAM | ||||||||||||||
| SIZE | 1"×3/4″ | 1-1/4″×1/8" | 1-1/4″×1/4" | 1-1/4″×3/8" | 1-1/4″×1/2" | 1-1/4″×3/4" | 1-1/4″×1" | 1-1/2″×1/8" | 1-1/2″×1/4" | 1-1/2″×3/8" | 1-1/2″×1/2" | 1-1/2″×3/4" | 1-1/2″×1" | 1-1/2″×1-1/4" |
| PRESSURE | 150lbs | |||||||||||||
| THREAD | ASME B1.20.1,DIN2999,ISO 228-1,ISO7/1 | |||||||||||||
| MATERIAL | CF8/CF8M | |||||||||||||
| INVESTMENT CASTING | ||||||||||||||
| ISO9001,AD2000,PED,CRN,NSF 61/372 | ||||||||||||||
| BRAND: UB | ||||||||||||||
| MADE IN VIETNAM | ||||||||||||||
Product Advantages
- Superior Material Quality: Made from CF8/CF8M stainless steel, providing excellent corrosion resistance and mechanical properties suitable for harsh environments.
- Precision Manufacturing: Produced through investment casting, ensuring precise dimensions and a smooth surface finish.
- Reinforced Banded Design: The unique banded structure (external reinforcing ring) enhances pressure-bearing capacity, ensuring the connection remains leak-proof and secure under high pressure and vibration.
Primary Applications
- Oil and Gas Industry: Suitable for pipeline systems conveying oil and gas. Its high-strength design handles high pressure and complex conditions, ensuring transmission safety.
- Chemical and Corrosive Environments: The excellent corrosion resistance of stainless steel makes it ideal for connecting pipes conveying various corrosive media in chemical plants.
- Marine and Offshore Engineering: Superior resistance to salt spray corrosion makes it an ideal choice for piping systems in shipbuilding, offshore platforms, and similar applications.
