United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel elbow 45° in Vietnam, also supports customized service. If you're going to buy bulk advanced stainless steel elbow 45°, welcome to get free sample from our factory. Quality products and low price are available.
Product Description

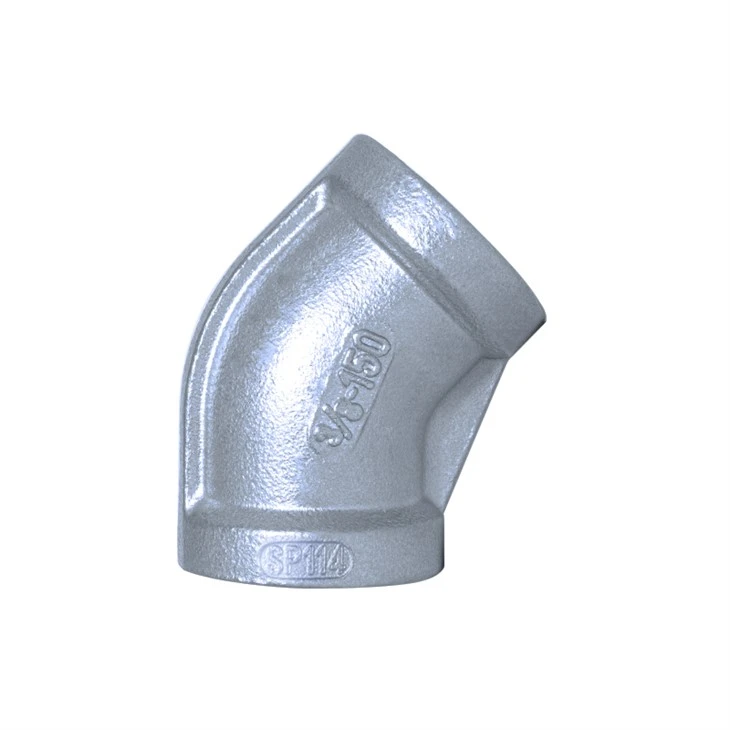

The UB-branded Stainless Steel 45° Elbow is a precision-manufactured component for 45° directional transitions in pipe networks, designed to maintain laminar fluid flow and minimize pressure drop in conveyance processes. Fabricated from CF8/CF8M stainless steel through investment casting, Stainless Steel 45° Elbow features material properties and structural precision that enable stable mechanical coupling with stainless steel cross fitting, forming a cohesive piping assembly for complex layout requirements in industrial and commercial fluid systems.
Product Parameters
|
Specification Category |
Detailed Parameters |
|
Product Name |
Stainless Steel 45° Elbow |
|
Brand |
UB |
|
Material |
CF8/CF8M Stainless Steel |
|
Pressure Class |
150lbs |
|
Thread Standards |
ASME B1.20.1, DIN2999, ISO 228-1, ISO7/1 |
|
Manufacturing Process |
Investment Casting |
|
Size Range |
1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
|
Certifications |
ISO9001, AD2000, PED, CRN, NSF 61/372 |
|
Place of Origin |
Vietnam |
|
Material Property |
Corrosion resistance, structural rigidity, temperature stability (per stainless steel CF8/CF8M inherent characteristics) |
UB5001
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" |
| PRESSURE | 150lbs | |||||||||||
| THREAD | ASME B1.20.1,DIN2999,ISO 228-1,ISO7/1 | |||||||||||
| MATERIAL | CF8/CF8M | |||||||||||
| INVESTMENT CASTING | ||||||||||||
| ISO9001, AD2000, PED, CRN, NSF 61/372 | ||||||||||||
| BRAND: UB | ||||||||||||
| MADE IN VIETNAM | ||||||||||||
Product Advantages
1.Material performance matching with multi-medium working conditions
CF8/CF8M stainless steel raw material is selected for targeted adaptation to the characteristics of different conveyance media. CF8 has stable chemical inertness for neutral media such as tap water and industrial pure water, while CF8M has enhanced resistance.
2.Long-term structural stability under design working conditions
The investment casting process ensures the uniform density of the elbow's overall structure, without internal shrinkage, porosity and other casting defects. The stainless steel material's inherent structural rigidity and corrosion resistance make the fitting's wall thickness and structural strength remain unchanged for a long time under the design pressure, temperature and medium erosion conditions, and the structural performance does not attenuate with the extension of service time.
Product Application
1. Petrochemical & Process Industry
Used in raw material and finished product conveyance pipelines in refineries, chemical plants and petrochemical complexes, mated with stainless steel cross fitting for multi-branch pipeline layouts, suitable for handling hydrocarbon fluids, chemical solvents and process water.
2.Water Treatment & Sanitation
Compliant with NSF 61/372 standards for potable water contact, applicable in municipal water supply, wastewater treatment and pure water production systems, resistant to corrosion from chlorinated water and aqueous solutions with varying pH values.
3. Food & Pharmaceutical Manufacturing
Utilized in hygienic fluid conveyance pipelines for food processing, beverage production and pharmaceutical formulation, where the non-porous stainless steel surface prevents microbial adhesion and meets GMP hygiene requirements for production environments.
