United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel street elbow 90° in Vietnam, also supports customized service. If you're going to buy bulk advanced stainless steel street elbow 90°, welcome to get free sample from our factory. Quality products and low price are available.

Product Description

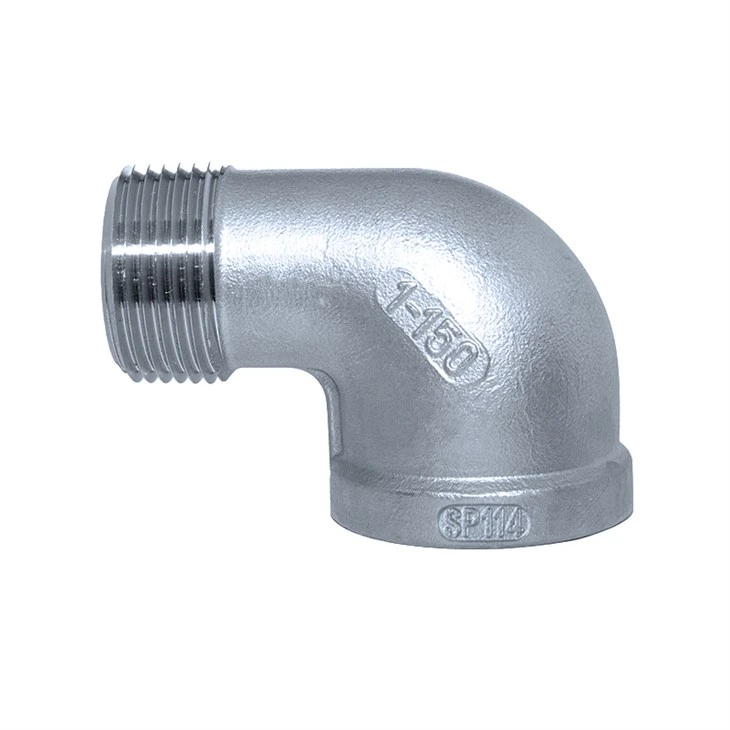

The Stainless Steel Street Elbow 90° is a one-piece, threaded pipe fitting manufactured in accordance with MSS-SP-114. It is designed for 90° directional changes in piping systems where the available clearance is insufficient for a standard elbow used in combination with a nipple. The female-threaded end receives the pipe, and the male-threaded end is screwed directly into a tee, valve, coupling or other mating fitting, thereby eliminating one threaded joint at each change of direction.

Product Parameters

Standard	MSS-SP-114
Product Name	90° Street Elbow (Female × Male)
Size Range	1/8″ – 4″
Pressure Rating	150 lbs
Thread Standards	ASME B1.20.1 (NPT), DIN 2999, ISO 228-1, ISO 7-1
Material	CF8 / CF8M
Manufacturing Process	Investment Casting
End Connection	Female NPT × Male NPT
Brand	UB
Certifications	ISO9001, AD2000, PED, CRN, NSF 61/372
Place of Origin	Vietnam

SIZE

1/8″

1/4″

3/8″

1/2″

3/4″

1″

11/4″

11/2″

2″

21/2″

3″

4″

PRESSURE

150LBS

THREAD

ASME B1.20.1, DIN2999, ISO 228-1, ISO7/1

MATERIAL

CF8/CF8M

INVESTMENT CASTING

ISO9001, AD2000, PED, CRN, NSF 61/372

BRAND: UB

MADE IN VIETNAM

Product Advantages

1. Fewer Threaded Joints

The male end connects directly into the adjoining fitting, eliminating the nipple and removing one threaded joint at each change of direction.

2. Space-Saving Installation

Suitable for 90° directional changes where a standard elbow combined with a nipple cannot be accommodated.

3. One-Piece Investment Casting

The body is manufactured as a single investment casting in CF8/CF8M stainless steel.

4. Full Size Availability

Available in sizes from 1/8″ to 4″.

5. Two Material Grades

Supplied in CF8 and CF8M stainless steel as listed in the specification.

6. Certification

Certified to ISO9001, AD2000, PED, CRN and NSF 61/372.

FAQ

Q1:How is the Stainless Steel Street Elbow 90° different from a plain 90° elbow?

A:A plain elbow has two female ends, so it needs a nipple to reach the next fitting. The street elbow carries the male thread on one end, so it connects directly and takes one joint out of every corner.

Q2:Is this fitting approved for drinking water?

A:The 150 lbs range carries NSF 61/372 certification, so it is fine for potable water systems in North America. Ask for the certificate when you order and it goes on the packing list.

Q3:Is the product available in 316 stainless steel?

A:Yes. CF8M, the cast equivalent of 316, is available throughout the entire size range. It is recommended for services involving chlorides, washdown environments or marine atmospheres.
