Product Overview

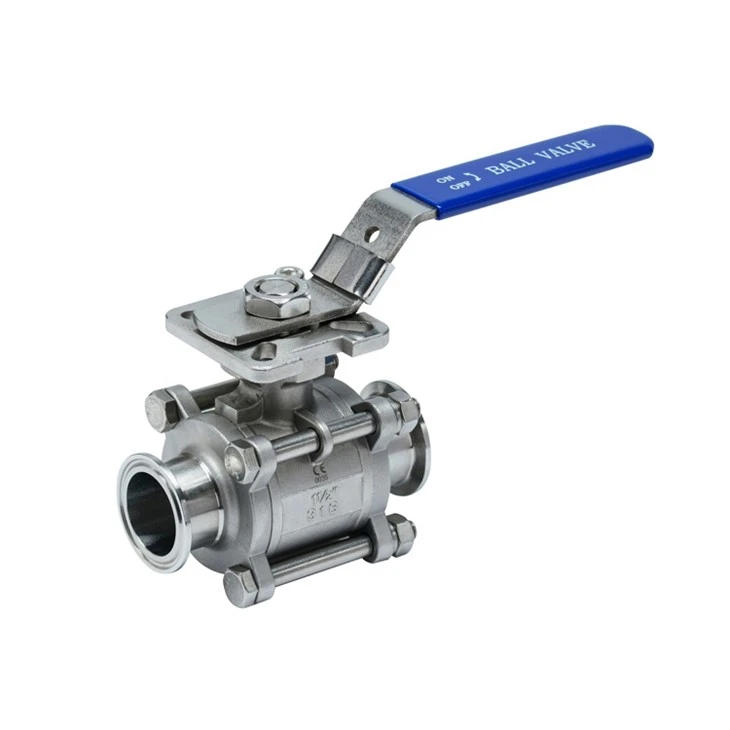

The 3PC Ball Valve Clamped End from United Brothers combines a full port design with a blow-out proof stem for safe, efficient flow control. The three-piece construction means you can service the valve inline without breaking the pipeline. A locking handle is available for applications requiring tamper-proof operation. The 3PC Ball Valve Clamped End meets European pressure equipment requirements through PED/CE certification and AD2000-W0 material standards.
Key Specifications
|
Parameter |
Value |
|
Size |
1/2" to 4" |
|
Pressure |
1000 PSI / PN63 |
|
Temperature |
-20°C to 180°C |
|
Connection |
Clamped end (ISO2852) |
|
Port |
Full bore |
|
Construction |
Investment casting |
|
Stem |
Blow-out proof |
|
Handle |
Standard or locking (optional) |
|
Certifications |
PED/CE, AD2000-W0 |
|
Testing |
API598, EN12266 |
Technical Features
|
Three-piece body |
Service in place without pipeline disassembly |
|
Full port |
Low pressure drop; allows pipeline cleaning |
|
Clamped ends |
Tool-free connection; easy for frequent maintenance |
|
Blow-out proof stem |
Operator safety under pressure |
|
Locking handle option |
Prevents accidental valve operation |
|
Stainless steel casting |
Corrosion resistance; clean surface finish |
Applications
Chemical and petrochemical processing
Food, beverage, and pharmaceutical production
Drinking water and wastewater treatment
Oil and gas pipelines
HVAC and refrigeration systems
Marine and shipbuilding
Mining and mineral processing
Paper and sugar manufacturing
Installation & Maintenance
Storage (Pre-Installation)
Store indoors, valve closed, ends capped. Operate every six months during extended storage-seats can take a set if compressed in one position for years. This isn't paranoia; it's warranty preservation.
Installation
Clamped ends require proper gasket selection. EPDM for water, PTFE for chemicals, Viton for hydrocarbons. Wrong gasket = leak or contamination.
Support the valve. Clamps don't carry pipe weight. Hangers within 3 pipe diameters on both sides.
Don't use as a throttling valve. Ball valves seal by line contact between ball and seat. Partial opening creates turbulent flow that erodes the sealing surface. Within months, you'll have a leak that can't be fixed by tightening the packing.
In-Service Maintenance
External corrosion protection every 1-2 years depending on environment. Coastal or chemical atmospheres accelerate attack on stainless.
Actuated valves: annual inspection of actuator performance. Pneumatic actuators lose speed as seals wear. Electric actuators develop backlash. Degraded performance precedes failure-replace components before they seize mid-cycle.
Operational Reality Check
If your maintenance plan assumes this valve will sit in one position for years and operate perfectly when needed, plan for failure. Ball valves in critical isolation service should be cycled quarterly to prevent seat adhesion and verify operability. Document the test-insurance and safety audits ask for this.
