United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel gate valve in Vietnam, also supports customized service. If you're going to buy bulk advanced stainless steel gate valve, welcome to get free sample from our factory. Quality products and low price are available.
Product Introduction

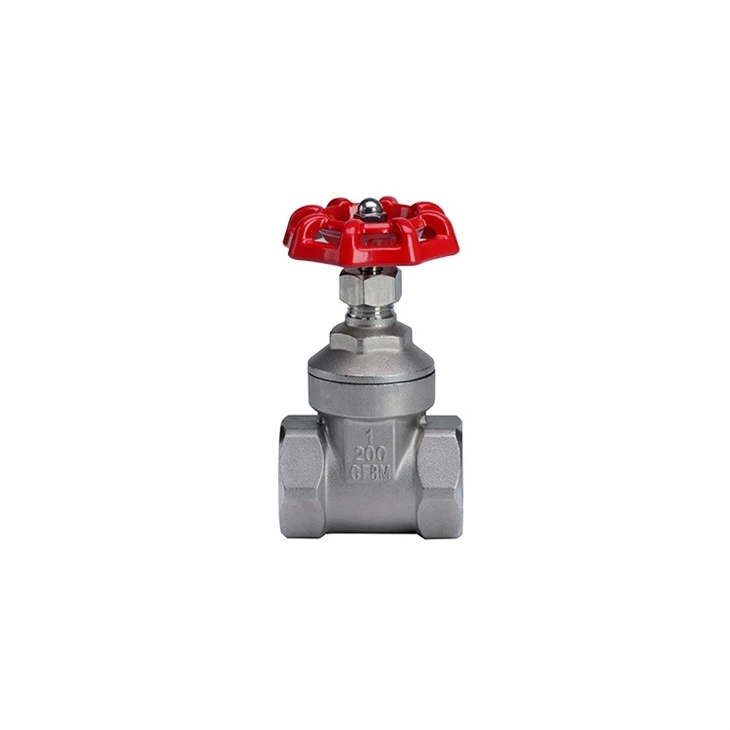

A stainless steel gate valve is a linear motion isolation valve. Its closing member is a gate that moves vertically along the seat centerline via the stem, opening or closing the flow path. When fully open, the valve provides an unobstructed flow path with minimal pressure loss. Depending on the structure, it can be classified as outside screw and yoke (OS&Y) or non-rising stem (NRS) . It is not recommended for throttling and should only be used in fully open or fully closed positions.
Product Parameters
|
Parameter |
Specification |
|
Body Material |
Stainless Steel ASTM A351 CF8M (316), 304, 316 |
|
Nominal Size |
DN20 (3/4") to DN600 |
|
Pressure Rating |
PN16 (16 bar) to Class 150 (150 psi CWP) |
|
End Connections |
BSP Thread (NPT), Flanged (ASME Class 150 / PN16) |
|
Stem Type |
Non-Rising Stem / Rising Stem (OS&Y) |
|
Sealing Type |
Metal-to-Metal Seal, PTFE Packing, Flexible Graphite |
|
Temperature Range |
-20°C to 180°C |
|
Disc Structure |
Solid Wedge |
Product Advantages
- Full Bore Design: When fully open, the flow path is unobstructed with minimal pressure loss, providing excellent flow capacity.
- Bidirectional Sealing: The wedge design supports bidirectional pressure sealing, ensuring zero leakage shut-off in both directions.
- Low Maintenance Cost: Features an adjustable packing gland and integral seat, making field maintenance easy. Some large-diameter designs allow online seat replacement.
Main Applications
- Industrial Fluid Transport: Suitable for water, steam, oil, and mildly corrosive media in industries such as petroleum, chemical, and power generation, used for isolation.
- Vacuum & Semiconductor: Used in high and ultra-high vacuum systems to isolate roughing pumps and vacuum lines, ensuring system integrity.
- Special Working Conditions: For media containing particulates or fibrous materials, a knife gate valve design is recommended to cut through impurities and ensure tight shut-off.
