United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of heavy pattern union ff in Vietnam, also supports customized service. If you're going to buy bulk advanced heavy pattern union ff, welcome to get free sample from our factory. Quality products and low price are available.

Product Description

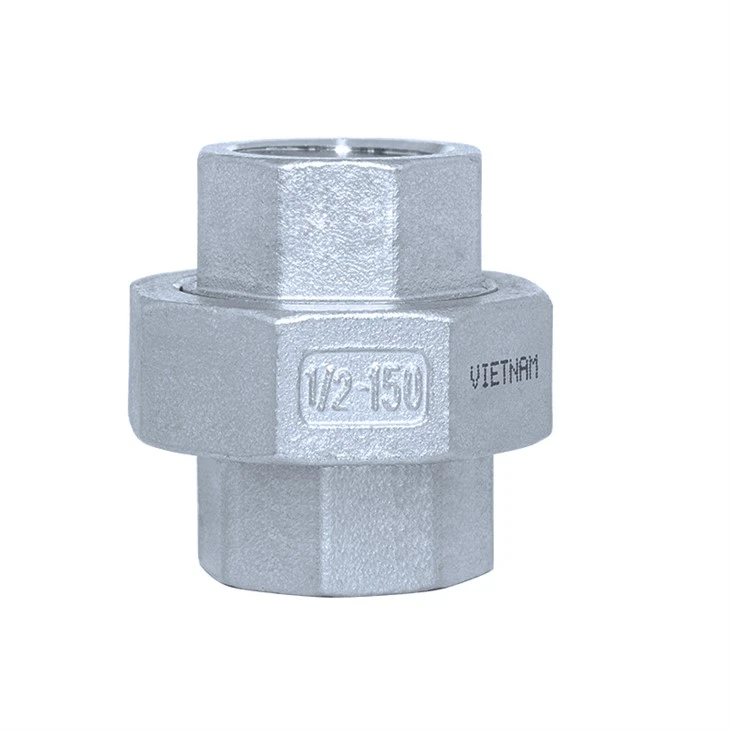

This MSS-SP-112 Union FF is a two-piece fitting designed for quick pipe disconnection and maintenance. Made in Vietnam from CF8/CF8M stainless steel, it features precision female threads complying with DIN2999. The union nut allows easy tightening for a reliable seal, with a lapped surface to prevent leaks.

Product Parameters

Sizes	1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″
Thread Standard	ASME B1.20.1, ISO7/1 (female/female)
Material	CF8/CF8M (ASTM A351-CF8/1.4308, ASTM A351-CF8M/1.4408)
Manufacturing Process	Investment Casting
Certifications	ISO9001, AD2000, PED, CRN, NSF 61/372
Brand	UB
Place of Origin	Vietnam
Design	Two-piece full female union with lapped sealing face

UB-7010

SIZE

1/8″

1/4″

3/8″

1/2″

3/4″

1″

11/4″

11/2″

2″

21/2″

3″

4″

PRESSURE

150lbs

THREAD

ASME B1.20.1, DIN2999, ISO 228-1, ISO7/1

MATERIAL

CF8/CF8M

INVESTMENT CASTING

ISO9001, AD2000, PED, CRN, NSF 61/372

BRAND: UB

MADE IN VIETNAM

Main Applications

Chemical and Petrochemical: Quick disconnection for filter and valve replacement in chemical transfer lines.
Food and Beverage: Sanitary connection and disconnection for cleaning and maintenance in food and beverage processing.
Pharmaceutical: Sterile line disconnection for equipment service in pharmaceutical production.
Water Treatment: Easy disconnection for membrane and filter changes in water purification systems.
Mining: Quick line disconnection for maintenance in mining water and slurry pipelines.

Chemical & Petrochemical

Drinking Water Food & Beverage HVACR

Paper & Pulp Sugar Refinery Water Treatment

Shipbuilding

FAQ

Q: 1. Does the MSS-SP-112 Union FF require a gasket for sealing?

A: A gasket is not required for standard low-pressure applications due to the precision-lapped sealing face. For high-vibration or critical fluid systems, we recommend a PTFE gasket, which we supply as a complementary product for all sizes.

Q: 2. What is the maximum number of times the union can be disconnected and reconnected?

A: The lapped sealing face maintains its integrity for up to 50 disconnection/reconnection cycles when installed and torqued correctly. After 50 cycles, a visual inspection of the sealing face is recommended to check for wear.

Q: 3. Can this union be used in high-temperature piping systems?

A: The MSS-SP-112 Union FF operates stably in temperatures from -20°C to 400°C. For temperatures exceeding 400°C, we offer a high-temperature alloy variant with a minimum order quantity of 100 units.
