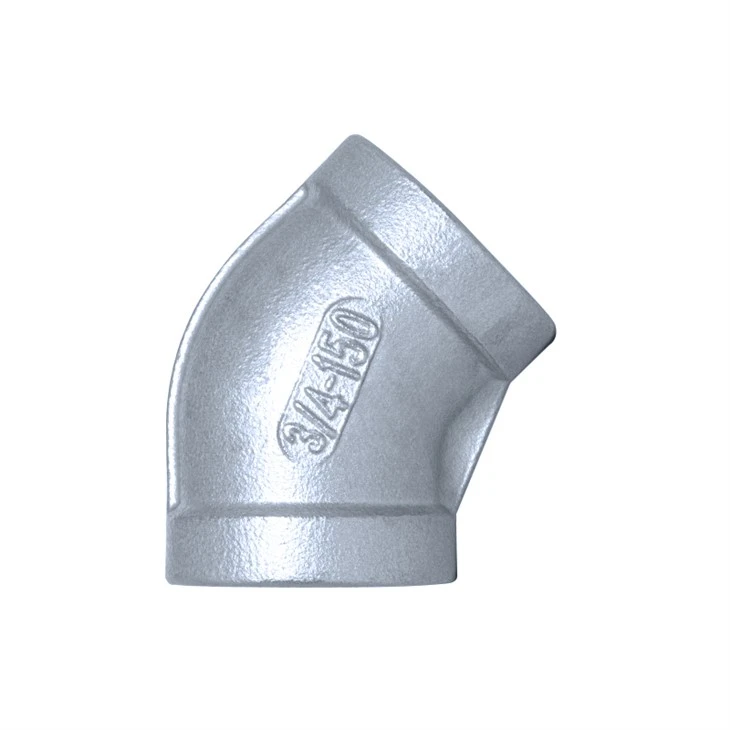

Heavy Pattern Elbow 45°

United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of heavy pattern elbow 45° in Vietnam, also supports customized service. If you're going to buy bulk advanced heavy pattern elbow 45°, welcome to get free sample from our factory. Quality products and low price are available.

Made from cast austenitic stainless steel through precision investment casting, The MSS-SP-112 Elbow 45° redirects fluid flow at a 45° angle with smooth internal contours. The MSS-SP-112 Elbow 45° is intended for installations where straight piping is impractical and a 90° elbow would cause excessive displacement or layout interference.

In field fabrication, this fitting is commonly installed near pumps, instruments, filter housings, support frames and skid‑mounted equipment-areas with limited installation space. A 90° elbow often creates a shift of more than 15 mm, while our 45° elbow limits offset within 5 mm to meet standard piping installation tolerances.

Two end connections are available to suit different construction requirements:Threaded ends (NPT / BSPT): Easy to install and replace, ideal for systems that require periodic disassembly or maintenance.Socket weld ends: Provide a compact, rigid and leak‑proof connection, suitable for permanent, fixed pipework.Material selection directly affects service life:304 stainless steel: For general industrial service with mild environments.316 stainless steel: Offers superior corrosion resistance, especially in wet, chloride‑exposed or chemically aggressive conditions.

UB7001

Before ordering, confirm the following specifications to match your on‑site pipeline system:

1. Material Grade: CF8,CF8M (low‑carbon grades for welding to prevent intergranular corrosion)

2. End Connection: NPT thread, BSPT thread, socket weld

3. Applicable Media: Water, compressed air, neutral industrial fluids, weakly corrosive media (depending on material grade)

All products are supplied with required documentation including:Material Test Reports (MTR).Heat number traceability. PMI (Positive Material Identification) records.Factory quality inspection reports.

Pipe size must be selected according to approved line specifications or physical replacement parts. Pressure and temperature ratings must be verified against the manufacturer's published data.

1. Improved Flow & Layout Flexibility: The MSS-SP-112 Elbow 45° reduces flow resistance and avoids the sharp redirection of a 90° elbow, making pipeline alignment, tie‑ins and field corrections much easier for installation crews.

2. Strong System Compatibility: The MSS-SP-112 Elbow 45°Using the same CF8/CF8M material grade as the rest of the pipeline ensures consistent performance, simplifies procurement and prevents galvanic corrosion caused by mixed materials.

3. Installation Versatility: Threaded ends support fast, non‑welded installation. Socket weld ends provide high structural integrity for permanent systems. Both designs adapt to common on site construction methods.

4. Practical for Inventory & Maintenance: As a standard fitting, The MSS-SP-112 Elbow 45° is widely used in plant retrofits, shutdown repairs, skid fabrication and daily maintenance. It is suitable for OEM equipment builders and end users alike.

Note: Corrosion resistance depends entirely on material grade and actual service environment. Always verify compatibility before use.

1. Industrial utility lines: Water, compressed air and general service piping in crowded mechanical rooms.

2. Equipment connections: Pump outlets, instrument branches, compact skids and modular equipment.

3. Water treatment & dosing skids: Short piping runs around tanks, filters, valves and sampling points.

4. Plant maintenance & retrofit: The MSS-SP-112 Elbow 45°Used as an alignment fitting to match new and existing pipelines with minimal on‑site rework.

5. Food, beverage & clean utilities: Suitable for utility and support piping (not for direct sanitary process contact without special polishing).

Chemical & Petrochemical

Drinking Water Food & Beverage HVACR

Paper & Pulp Sugar Refinery Water Treatment

Shipbuilding
