Heavy Pattern Cross

United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of heavy pattern cross in Vietnam, also supports customized service. If you're going to buy bulk advanced heavy pattern cross, welcome to get free sample from our factory. Quality products and low price are available.

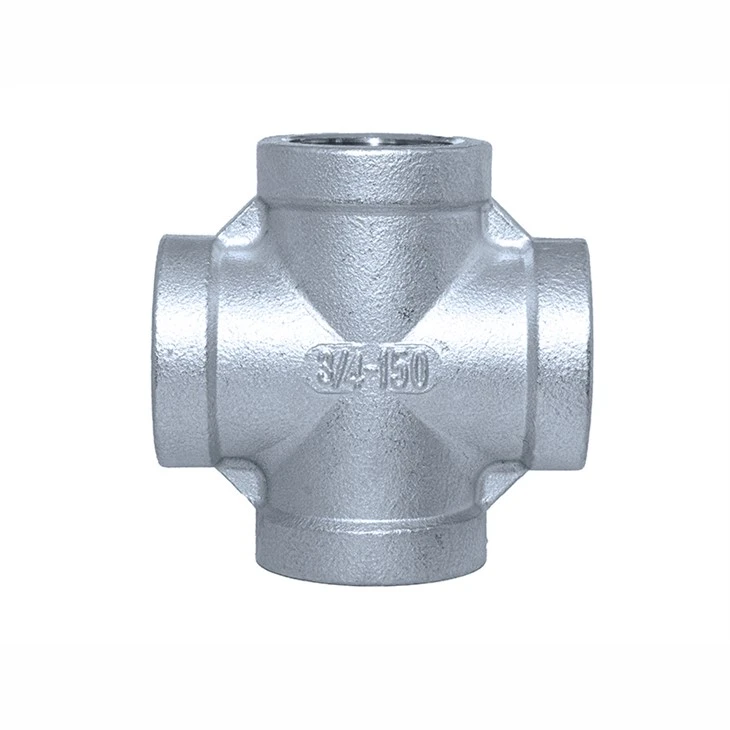

Crafted as a one-piece cast stainless steel fitting with four equal-sized ports, the MSS‑SP‑112 Cross forms a central junction to distribute fluid in four directions. Field experience shows it is most practical in compact spaces-such as instrument manifolds, drain/vent lines, auxiliary utility pipes, and small equipment assemblies-where multiple separate fittings would increase leak points and complicate layout.

A key industry clarification: The MSS‑SP‑112 Cross is an official standard governing surface finish requirements for corrosion-resistant cast steel fittings, not a pressure or design standard for the fitting itself. In commercial practice, suppliers categorize cast fittings into light-pattern (thinner wall, standard surface finish under MSS SP-112) and heavy-pattern (thicker wall, often referenced under MSS SP-114 for cast threaded/socket-weld fittings). This is a widely adopted market classification, not a formal standard. For ordering and technical documentation, buyers must confirm wall thickness, connection type, and material grade alongside the "MSS‑SP‑112" label to avoid mismatches.

UB7005

1. Material Grades:  (CF8) and (CF8M) are the most common, compliant with ASTM A351; CF8/CF8M (low-carbon) are available for welded applications to prevent intergranular corrosion.

2. Nominal Sizes: Concentrated in small IPS ranges (1/8" to 4" ), the primary size range for plant utility and instrument piping.

3. End Connections: NPT/BSPT threaded (mainstream for maintenance) and socket weld (for permanent assemblies).

4. Pressure-Temperature: Class 150 (2.0MPa) at -29°C to 425°C; ratings vary slightly by wall thickness and casting quality.

5. Applicable Media: Water, compressed air, lubricating oil, low-pressure steam, and neutral industrial fluids.

Formal industrial projects require full documentation: Material Test Certificates (MTC), heat number traceability, and PMI (Positive Material Identification) reports (per ASTM E1019). These are mandatory for project acceptance, not just supplementary to catalog details.

1. The practical value of this cross lies in simplifying four-way junctions without overcomplicating the system. A single one-piece casting replaces multiple tees and couplings, directly reducing the number of connection points and potential leak sources-critical in tight equipment spaces where maintenance access is limited.

2. Material consistency is another key benefit. Offered in CF8/CF8M grades, The MSS‑SP‑112 Cross matches existing stainless steel pipelines, eliminating galvanic corrosion risks and simplifying spare parts inventory management. This compatibility is especially valuable for utility lines, skid assemblies, and long-term maintenance work where uniformity matters more than custom features.

3. For sourcing, The MSS‑SP‑112 Cross is a standard product stocked by most industrial distributors, with fast lead times for common sizes. Custom-fabricated four-way junctions require longer lead times and higher costs, making this cast cross the more cost-effective choice for routine industrial service. The MSS‑SP‑112 Cross is important to note it is not suitable for high-pressure process lines, where flow distribution and branch stress demand alternative layouts.

1. This fitting is most widely used in plant utility piping systems, particularly for water, compressed air, drain, and auxiliary process lines that need multi-directional splitting in confined spaces. It is a standard component in water treatment skids, chemical plant utility loops, and food/beverage non-contact utility lines.

2. The MSS‑SP‑112 Cross is also integrated into compact equipment assemblies-including pump manifolds, filter housings, and instrument panels-where multiple small lines converge. During plant retrofits and maintenance, it serves as a direct replacement part to match existing branch geometry, avoiding costly pipeline rerouting or spool redesign.

3. In light chemical services, The MSS‑SP‑112 Cross performs reliably with compatible media. For food/beverage facilities, it is only approved for non-contact utility-side piping; sanitary process contact requires specialized polished fittings with additional certification.

Chemical & Petrochemical

Drinking Water Food & Beverage HVACR

Paper & Pulp Sugar Refinery Water Treatment

Shipbuilding
