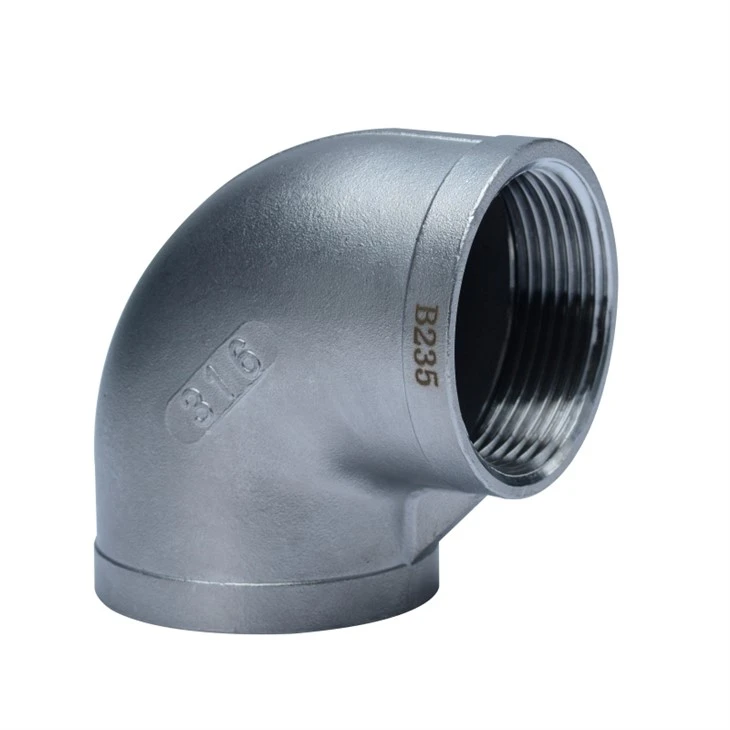

ISO4144 Elbow 90°

ISO4144 Elbow 90°

ISO4144 90°Elbow is a threaded pipe fitting designed to change the direction of pipeline flow by 90 degrees.
It conforms to ASME,DIN,BS,and ISO thread standards and is made from stainless steel for reliable performance in corrosion-resistant applications.
Send Inquiry
Description

United Brothers Metal Products Co., Ltd. is one of the leading manufacturers and suppliers of iso4144 elbow 90° in Vietnam, also supports customized service. If you're going to buy bulk advanced iso4144 elbow 90°, welcome to get free sample from our factory. Quality products and low price are available.



Product Description



The ISO4144 90° Elbow realizes smooth 90°steering in pipelines while maintaining a firm and leak-proof connection.Manufactured in accordance with ISO4144 dimensional standards and with a 150 lbs pressure rating, the ISO4144 90°Elbow supports multiple thread types including NPT, BSPT and BSPP, with strong compatibility. Made of AISI CF8 and CF8M stainless steel, the fitting has excellent corrosion resistance, high structural strength and long service life, suitable for long-term stable operation in various harsh working conditions.



Technical Parameters



Thread Ends

Conform to ASME B1.20.1(NPT)DIN2999&BS21ISO228/1&ISO7/1

Dimensions

Conform to ISO4144

Pressure Rating

150 lbs

Materials

ASTM A351-CF8M/1.4408ASTM A351-CF8/1.4308

Brand

UB



Product Advantages



1. Enables smooth 90°directional change in pipelines
The ISO4144 90°Elbow Designed to achieve a smooth 90°change in flow direction, making pipeline layout more flexible and efficient in limited installation spaces.

2. Corrosion-resistant stainless steel(CF8,CF8M)
Made from high-quality stainless steel CF8,CF8M,providing excellent corrosion and rust resistance for long-term use in demanding environments.

3. Compatible with multiple international thread standards
The ISO4144 90°Elbow Supports various international thread standards, ensuring broad compatibility for different markets and piping systems worldwide.

4. Reliable and leak-proof connection
Precision-machined threads and solid construction ensure a tight, secure, and leak-proof connection for stable operation.

5. Suitable for both industrial and sanitary systems
Widely applicable in both industrial and sanitary piping systems, meeting the requirements for durability, cleanliness, and reliability.



Main Applications



1. Chemical & Petrochemical: Corrosive fluid transfer, acid/alkali pipelines, and refinery processing systems.
2. Drinking Water: Potable water supply lines, residential/commercial plumbing, and municipal water distribution(NSF 61/372 certified).
3. Food & Beverage: Dairy, brewery, winery, and food processing pipelines(hygienic, corrosion-resistant design).
4. HVACR: Heating, ventilation, air conditioning, and refrigeration systems(chilled water, condensate lines).
5. Shipbuilding & Marine: Shipboard piping, desalination plants, and offshore fluid transfer systems(chloride-resistant CF8M grade).
6. Mining & Oil & Gas: Mineral processing pipelines, natural gas distribution, and oilfield production networks.
Chemical & Petrochemical
Chemical & Petrochemical
Drinking Water Food & Beverage HVACR
Drinking Water Food & Beverage HVACR
Paper & Pulp Sugar Refinery Water Treatment
Paper & Pulp Sugar Refinery Water Treatment
Shipbuilding
Shipbuilding

FAQ

Q: What is a 90°elbow used for?

A: It is used to change the direction of pipeline flow by 90 degrees.

Q: What materials are available?

A: AISI CF8 and CF8M stainless steel.

Q: What thread types are supported?

A: NPT,BSPT,and BSPP threads.
